Foshan Anheda New Material Co., Ltd
| Tipo de Pago: | L/C,T/T,D/P |
| Incoterm: | FOB,CFR,CIF,EXW,FCA,DDP |
| Cantidad de pedido mínima: | 1 Kilogram |
| transporte: | Ocean,Land,Air,Express |
| Hafen: | ShenZhen,GuangZhou |
Sombra:

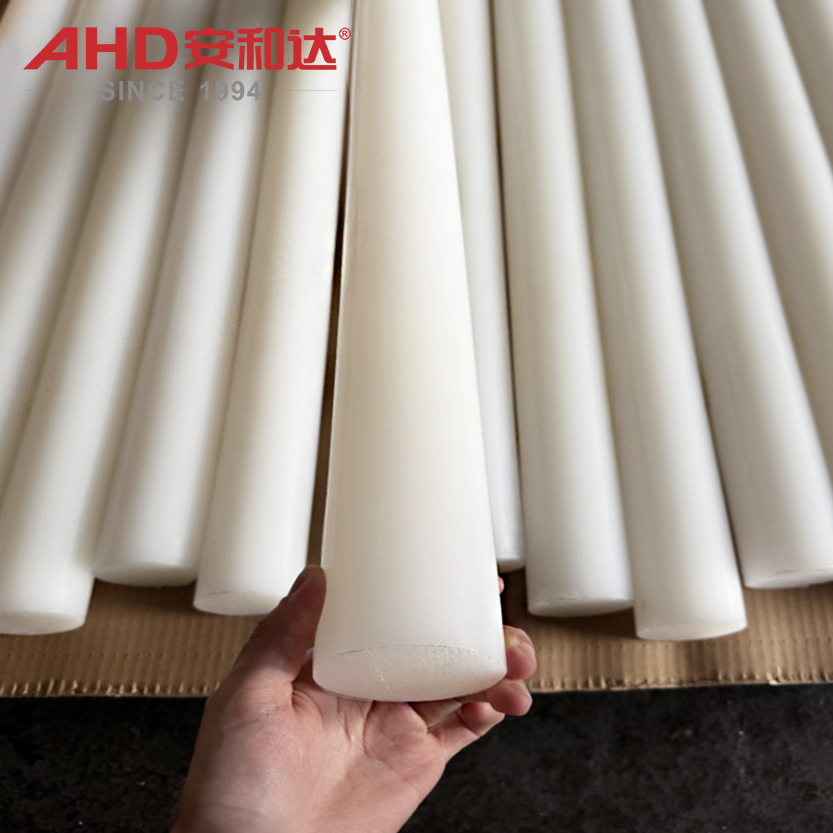

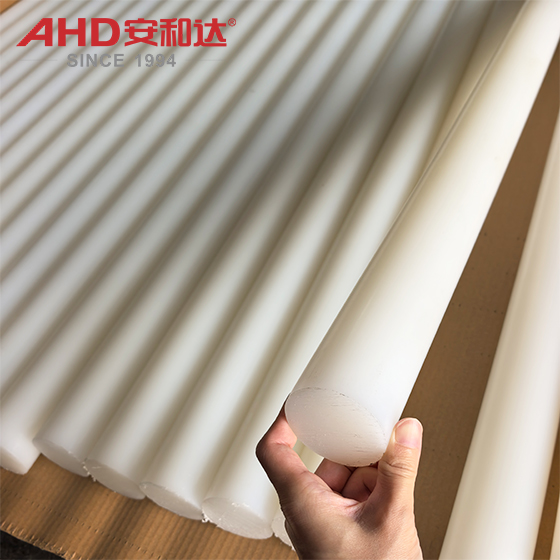

Modelo: AHD-PVDF
Marca: AHD
Origin: Porcelana
Proceso de dar un título: ISO,SGS,ROHS,TUV,FDA

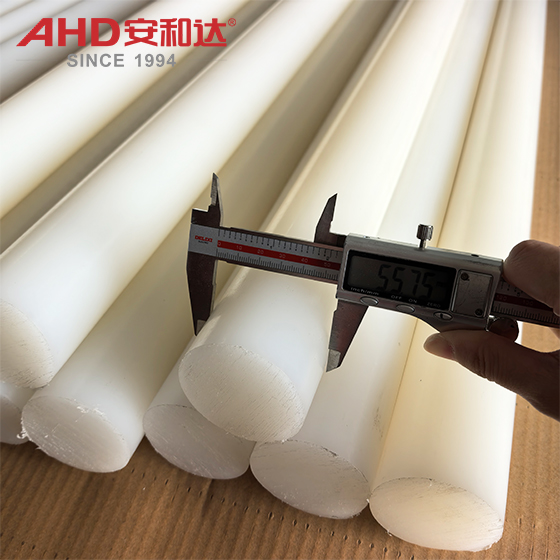

Dia(mm): 6-200
Size(mm): 1000
Color: Natural
Lugar De Origen: porcelana
| Unidades de venta | : | Kilogram |
| Tipo de paquete | : | Embalaje de exposición |
| Ejemplo de una imagen | : |
|
| Descargar | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Item | PVDF (Polyvinylidene fluoride) |
|---|---|
| Heat resistance (continuous) | 150℃ |
| Heat resistance (short-term) | 160℃ |
| Melting point | 175℃ |
| Linear thermal expansion coefficient (average 23~100℃) | 130×10⁻⁶ /℃ |
| Linear thermal expansion coefficient -(23-150℃ average) | 145×10⁻⁶ /℃ |
| Flammability (UL94) | V-0 |
| Dipping into water at 23℃ for 24h | 0.01% |
| Dipping into water at 23℃ | 0.05% |
| Bending tensile stress / Tensile stress off shock | 50 / - MPa |
| Breaking tensile strain | >20 % |
| Tensile modulus of elasticity | 2300 MPa |
| Compressive stress of normal strain-1%/2% | 17 / 32 MPa |
| Pendulum gap impact test | 10 kJ/m² |
| Rockwell hardness | M75 |
| Dielectric strength | 18 kV/mm |
| Volume resistance | >10¹⁵ Ω·cm |
| Surface resistance | >10¹⁶ Ω |
| Relative dielectric constant-100Hz/1MHz | 7.4 / 6 |
| Critical tracking index (CTI) | 600 V |
